Description
- Halogen-Free
- Ideal for all rework, solder, de-solder and reflow applications
- Non-corrosive, non-conductive, no-clean
- Tack flux will not run all over PCB when applied
- Has a pleasant odor
- Excellent wetting
- Easily cleaned with isopropyl alcohol (IPA)
- Attachment of BGA spheres
- Soldering flip chip components
- Long stencil life
- Wide process window
- Clear residue
- Can be used with Leaded and Lead-Free applications
- RoHS 3 and REACH compliant

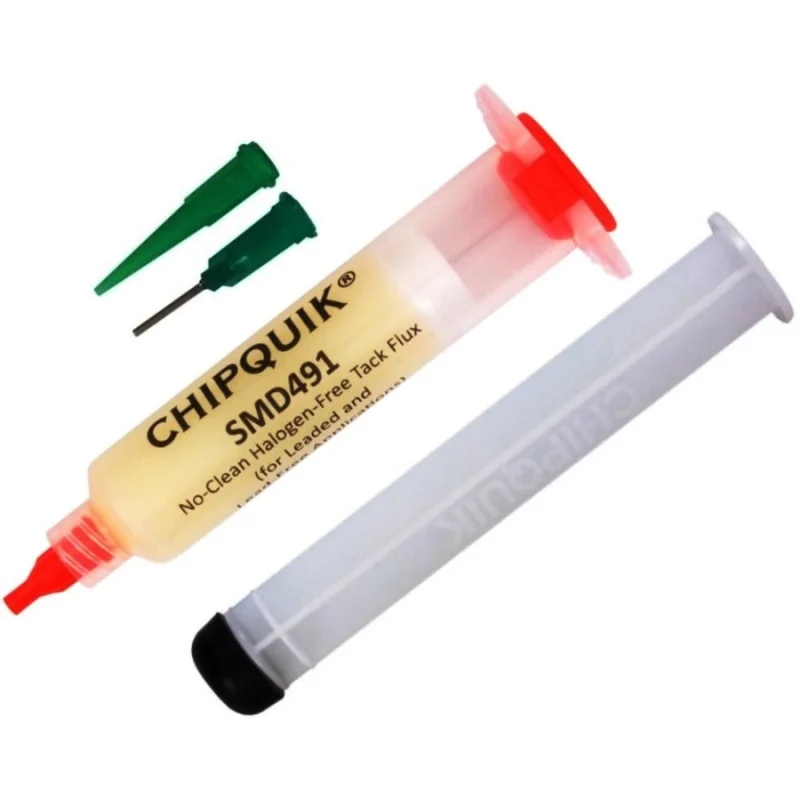

Tack Flux No-Clean Halogen-Free in a 10cc syringe w/plunger & tip. Used for touch up and rework, attachment of BGA spheres, soldering flip chip components. Low viscosity No-Clean synthetic paste flux.
Stencil Life
- 8 hours @ 20-50% RH 22-28C (72-82F)
- 4 hours @ 50-70% RH 22-28C (72-82F)
Stencil Cleaning
- Automated stencil cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA).
Storage and Handling
- Store refrigerated or at room temperature 3-25C (37-77F). Do not freeze. Allow 4 hours for flux to reach an operating temperature of 20-25C (68-77F) before use.
Transportation
- This product has no shipping restrictions. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground or air will not impact this product’s stated shelf life.
