Description

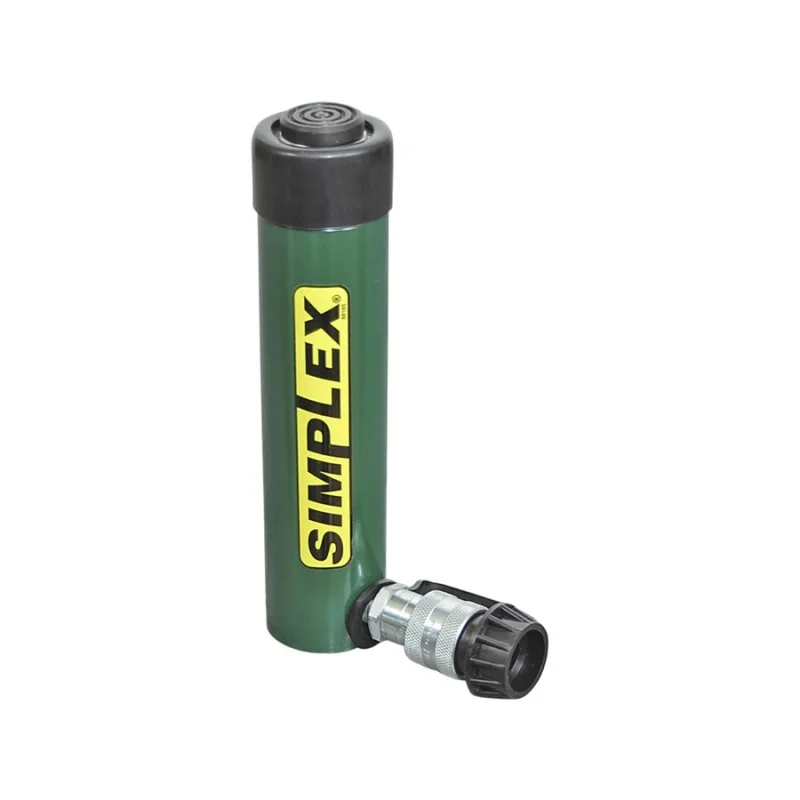

R104, 10 ton (89,0 kN) Capacity, 4.19 in (106,4 mm) Stroke, Single-Acting, General Purpose Hydraulic Cylinder
Features
- Single acting with heavy-duty internal retraction spring
- Solid and plated piston resists scoring & corrosion
- Heat treated grooved saddles are provided as standard
- Stop ring limits piston travel at the end of the stroke to prevent blow-out
- High flow couplers are plated to resist corrosion
- Polyurethane wipers clean the piston surface during retraction – protecting the inner cylinder assembly from dirt, moisture, and other contaminants
- Meets ANSI/ASME B30.1 Safety Standards
- Load tested under 125% of the nominal capacity
- For working pressures up to 10,000 psi (700 bar)
Simplex R-Series Single Acting Hydraulic Cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of cylinder tonnages and strokes available it’s easy to find a cylinder perfectly matched to your application.
Threaded collars offer versatility in fixturing to give you many more application possibilities. Included inside R Series Cylinders is a positive stop to limit piston travel at the end of the stroke, adding extra strength and safety to your cylinder, and cylinder life is extended by the wiper seal.
