Description

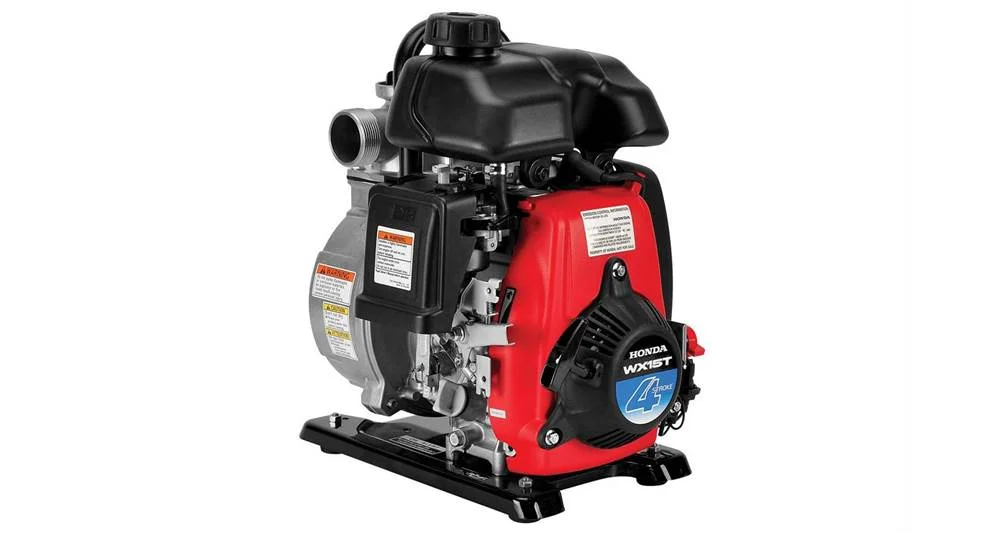

1 1/2″ general purpose pump
Key Features
- Weighs only 20 lbs.
- 74 gal./min capacity
- Hose clamps and strainer included
Features
- Easy starting Honda mini 4-stroke commercial engine: The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- Perfect for homeowners, gardeners, boat owners, and more: The WX15 is lightweight, compact, and easy to use.
- Lightweight aluminum pump: At only 20 lbs., the WX15 is easily portable.
- Standard transport handle: The WX15 is easy to carry wherever you need it.
- Hose clamps and strainer included
- 74 gal./min capacity
- Protected by Honda Oil Alert®: Protects the pump by shutting the engine off when low oil is detected.
Specifications
- Engine: GXH50
- Displacement: 49cc
- Bore and stroke: 1.65 in. x 1.42 in.
- Compression Ratio: 8.0:1
- Oil Alert: Std
- Pump Type: General purpose Centrifugal Self-priming
- Volute: Aluminum
- Impeller: Aluminum
- Mechanical Seal (Pump case / impeller): Carbon/Ceramic
- Priming time: 120 sec. at 16.4 ft.
- Drive system: Direct
- Discharge capacity: 74 gpm
- Suction port diameter: 1.5 in. NPT
- Discharge port diameter: 1.5 in. NPT
- Total head lift: 121 ft.
- Suction head lift: 26 ft.
- Maximum pressure: 52 psi
- Solids handling: N/A
- Dimensions (LxWxH): 14.0 in.x10.8 in.x14.8 in.
- Dry weight: 20 lb.
- Fuel Capacity: 0.20 gal
- Run Time @ Max Discharge: 0.9 hr
- Strainer Part #: 78325-YB0-751
- Residential Warranty: 2 years
- Commercial Warranty: 1 year
NOTES:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
