Name: Mark-10 Mr02-100 Force Sensor, 100 Lbf/1600 Ozf/50 Kgf/50000 Gf/500 N, R02 Series
SKU: YCT-10092225
Availability: InStock

Mark-10 Mr02-100 Force Sensor, 100 Lbf/1600 Ozf/50 Kgf/50000 Gf/500 N, R02 Series

SKU: YCT-10092225 Category: Detectors

Description

Member of the Plug & Test family of interchangeable sensors and indicators
Small size Stainless steel construction
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator sensor) can be supplied upon request, at no additional charge.
Accuracy is ±0.5% of full scale = indicator
Warranty is 3 years

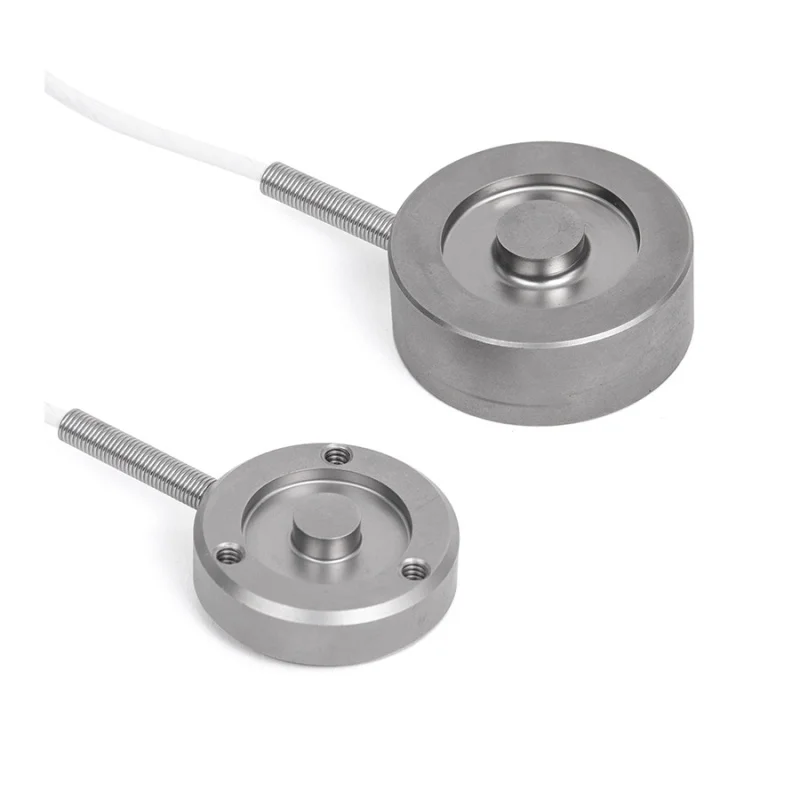

Series R02 button type smart sensors are designed for compression measurement applications in virtually every industry. Compact and rugged, Series R02 sensors are ideal for heavy duty applications with space constraints. Capacities available from 100 to 10,000 lbF [500 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test technology. Includes a certificate of calibration with data. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
