Description
Modulift Modular Spreader Beams provide the ideal solution for most lifting requirements, combining versatility and cost-effectiveness! The Modulift system truly allows you to build, re-build and reconfigure spreader beams to match the span and capacity you need. A typical setup consists of any number of struts, the end units, the drop links and finally, shackles. We can supply shackles for you, or, if you already have the proper shackles you can simply use them, saving even more money.

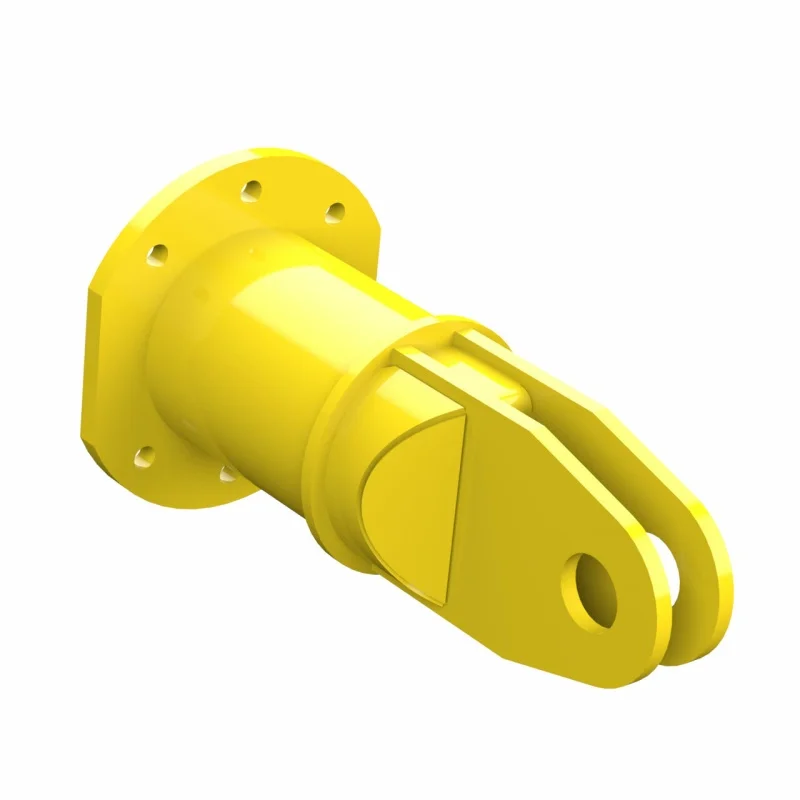

- This is an end unit for the MOD 6 beam size
- You need one at each end of the beam, and they work in conjunction with a MOD 6 drop link (you also need two end units per beam)
- The MOD 6 beam size is rated @ 6 Tons Safe Working Load (SWL) @ 112″ span
- Different span lengths or steeper Base to Sling Angle (BSA) measurements may impact the SWL for you system–review the PDF file on the Attachments tab for more information
- Lastly, make sure you have proper shackles available, or plan to purchase those from us as well
- The MOD 6 beam size calls for 4.75t shackles on top (larger) and 3.25t shackles on bottom(smaller)
- Be sure to use bolt, nut and cotter shackles, such as or
- can also be had, and we offer many types online, but can also custom build a sling to match your exact needs
Need help deciding which MOD system to go with? Refer to the charts below to view available strut sizes, as well as span (length) and corresponding load capacities.
