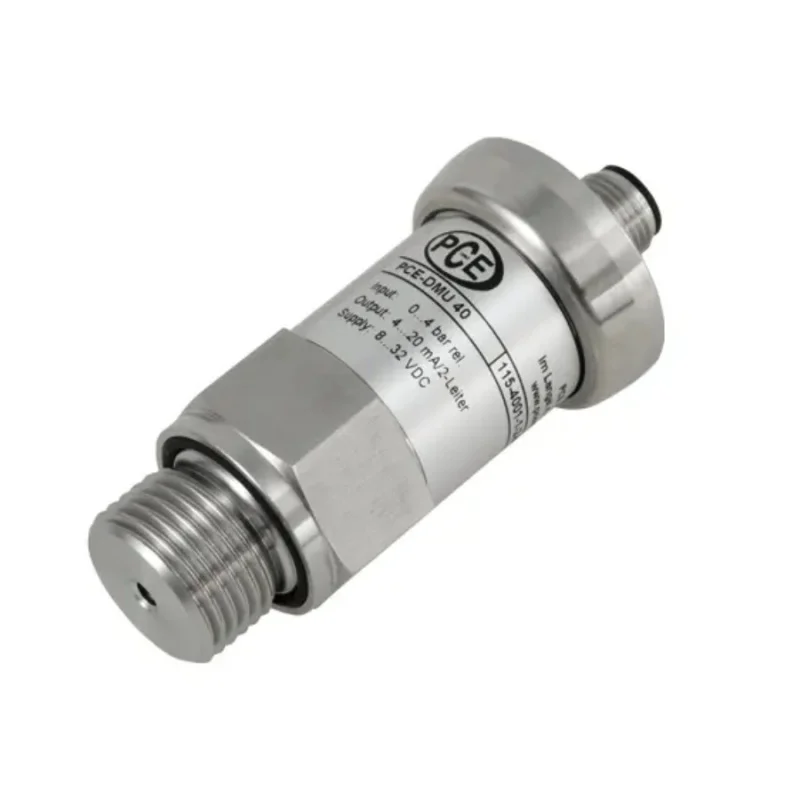

Pce Instruments Pce-Dmu 40 Pressure Transmitter, Up To 600 Bar, 20 Ma Or 10 V Output, Dmu Series

Description

• 2 or 3 conductor output
• 0/4 … 20 mA or 0 … 10 V (selectable)
• Smallest measuring range 0 … 100 mBar
• Maximum measuring range 0 … 600 bar
• 0.25% Accuracy of the measuring range
• Stainless steel diaphragm

The pressure transducer PCE-DMU 40 can be used for relative and absolute pressure measurements. The pressure transmitter can be used for gases, water as well as fuels and oils. Its metallic stainless steel 1.4435 membrane provides good corrosion resistance in many industrial processes. The modular design of the pressure transmitter allows a combination of process connections, pressure ranges and electrical connection variants and therefore meets almost all requirements of industrial applications. The pressure transmitter has an accuracy of 0.25% of the measuring range. Stainless steel is used as the separating membrane.

In The Box

• 1 x Pressure transducer PCE-DMU 40
