Description

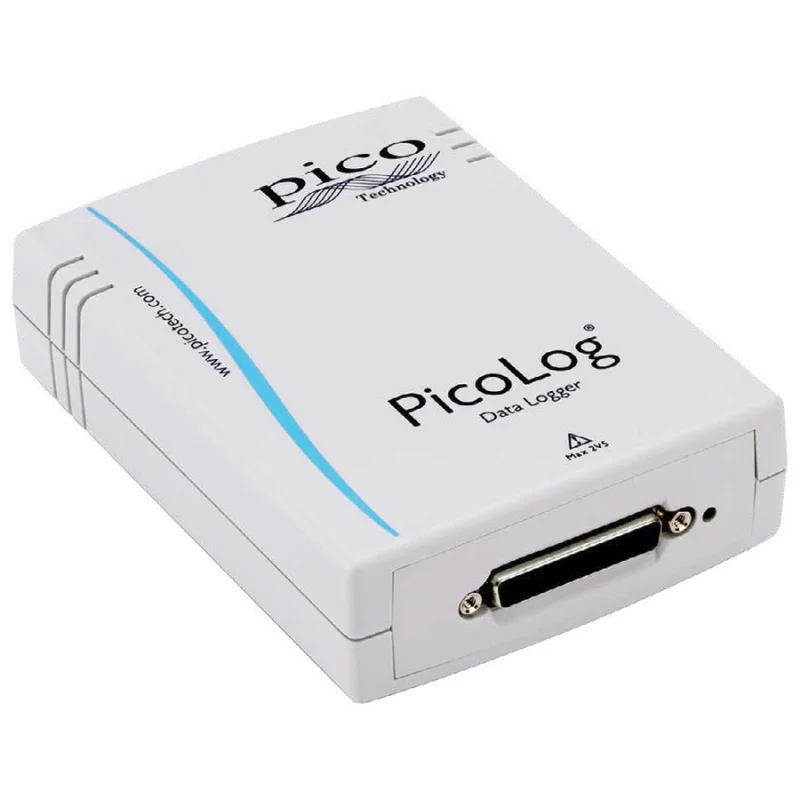

Pico Technology PicoLog 1012 Multichannel data acquisition (DAQ)
Features and Specifications
- 12 analog input channels
- 2 digital output channels
- Use up to 20 data loggers at the same time
- Up to 1 MS/s sample rate (block mode)
- Analog bandwidth (-3 dB) DC to 70 kHz
- USB connected and powered
- Data acquisition software and SDK included
An Expandable Multichannel Data Acquisition System (DAQ)
The PicoLog 1012 Multipurpose DAQ is a versatile and cost-effective solution designed to handle a wide range of general-purpose voltage, sensor, and transducer logging applications. It offers flexible, software-configurable scaling and control outputs. Building on the popularity of Pico’s earlier 11-channel data logger the ADC-11 model, the PicoLog 1000 series also includes a USB ADC-11 compatibility mode, allowing it to serve as a direct replacement for seamless integration into existing setups. The PicoLog 1012 model features 12 input channels with 10-bit resolution, and for users needing more capacity, the system is easily expandable. With the powerful PicoLog 6 software, you can connect up to 20 Pico data loggers to a single PC—scaling up to an impressive 320-channel data acquisition system. This flexibility also allows integration with other Pico devices, such as the USB TC-08 Thermocouple Data Logger, making the PicoLog 1012 a highly adaptable and scalable solution for both simple and complex data logging needs.
What’s in the Box
- PicoLog 1012 Data Logger
- USB 2.0 cable
- Quick Start Guide
