Description

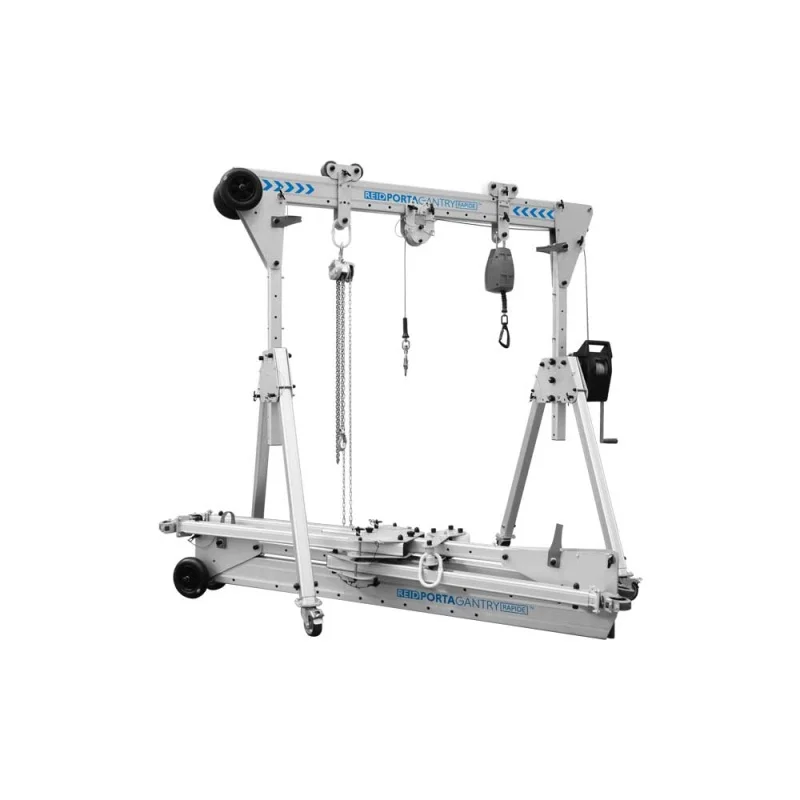

REID PORTAGANTRY RAPIDE Portable Gantry System
The REID PORTAGANTRY RAPIDE is a rapid-deployment, height-adjustable aluminum gantry designed for lifting equipment and personnel in confined space and rescue applications. Built for one-person assembly in under 60 seconds, this foldable gantry system is OSHA-compliant, ANSI Z359.18-17 certified, and ATEX approved for use in hazardous environments.
Models & Load Capacities
Two primary models are available based on required lifting capacity:
- PGR: Goods lifting up to 1100 lb; personnel lifting up to 550 lb; 1-person fall arrest
- PGR1T: Goods lifting up to 2200 lb; personnel lifting up to 1100 lb; 2-person fall arrest
Compact, Lightweight, and Adjustable
The PORTAGANTRY RAPIDE system is available in three height-adjustable versions with lifting eye heights up to 9.5 ft, and it supports beam spans up to 13 ft. Its compact, foldable frame stores easily in tight spaces and weighs between 73–137 lb depending on configuration.
- Adjustable height: up to 9 ft 5 in (lifting eye)
- Beam length options: 6’7″, 7’7″, 9’10”, and 13’1″
- Single-person assembly in under 60 seconds—no tools required
- Integrated transport wheels and fold-flat design
- Corrosion-resistant anodized aluminum construction
- Optional marine-spec and 316 stainless steel hardware
- Compatible with sheave carriers, winches, and trolley systems
Certifications & Compliance
- ANSI Z359.18-17 compliant (fall protection applications)
- OSHA compliant
- ATEX certified for use in explosive environments
With quick setup, multiple configuration options, and fully compliant safety features, the REID PORTAGANTRY RAPIDE is a proven solution for industries that demand portability without sacrificing performance. Buy online at Lifting.com or contact us for help selecting the right model.
