Description

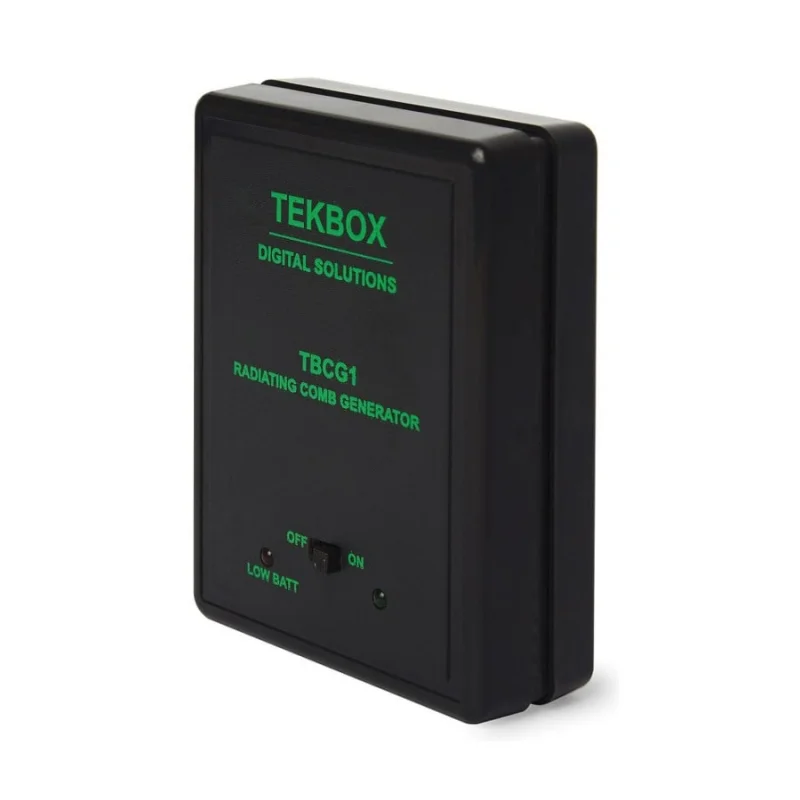

TBCG1-100MHz Radiating Comb Generator
Specs:
- Characterized comb spectrum: 30MHz – 6 GHz
- Tolerance: +/- 2.5 dB
- Current consumption: 175mA
Features:
- Internal antenna and a base frequency of 100MHz
- Portable device powered by a 9V alkaline cell
The TBCG1-100MHz is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. The comb generator is built and characterized to serve as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.
Warning: the TBCG1-100MHz radiates across a wide spectrum, significantly exceeding radiating noise limits specified in any CISPR standard. Use it only in a shielded environment to avoid interference with other electronic products.
Turn off the device after its use, to prevent battery drainage (ION = 175mA).
