Description

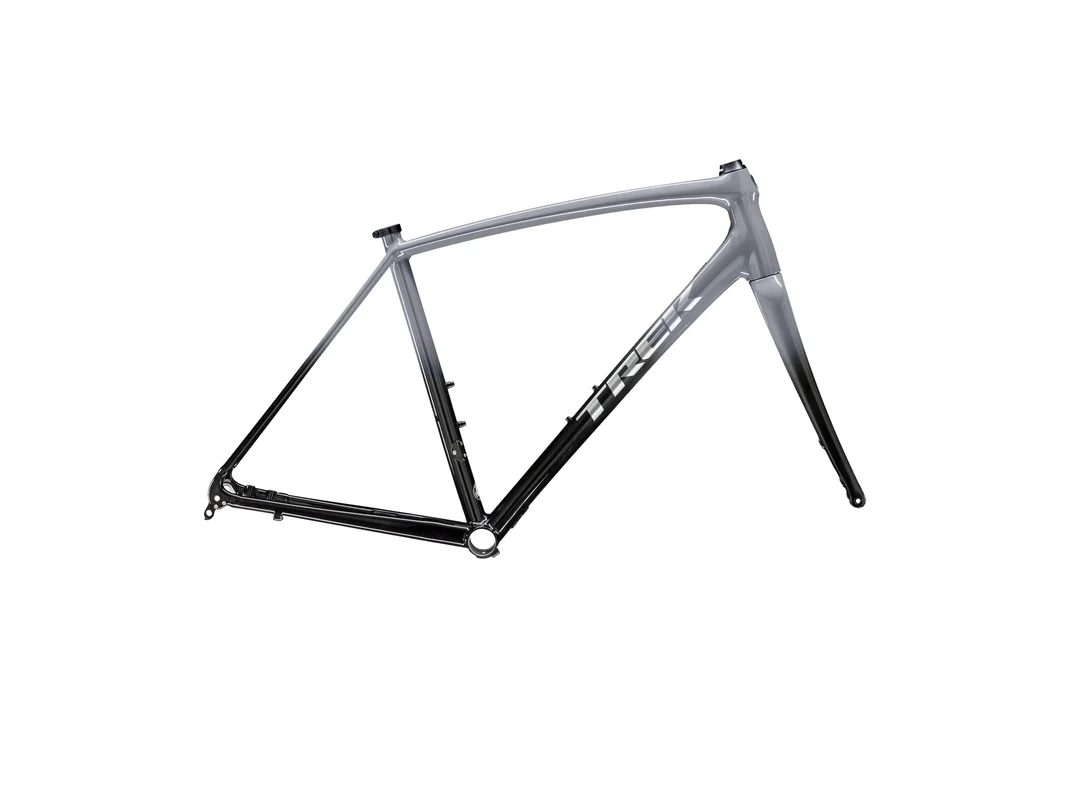

Émonda ALR Disc frameset gives you the look and performance of carbon at an alloy price point that’s far friendlier on the wallet. Shaped tubes and Invisible Weld Technology make this aluminum disc road bike frame the perfect starting point for a high-performance, high-value build.
- It climbs fast, corners on rails, and descends with confidence
- Disc brakes offer better braking performance and extra clearance for wider, more stable tires
- Proven H2 geometry gives you a ride quality that stands up in every way to far more expensive carbon bikes
- Internal cable routing extends the life of your cables and adds to the bike’s sleek look
| Frame | Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8” top, 1.5” bottom |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 52.1 |
| Frame Reach | 37.4 |
| Frame Size Number | 50cm |
| Frame Stack | 53.5 |
| Head Angle | 72.1° |
| Head Tube Length | 13 |
| Offset | 4.5 |
| Seat Tube | 47.6 |
| Seat Tube Angle | 74.6° |
| Standover | 70.7 |
| Trail | 6.1 |
| Wheelbase | 97.4 |
| Wheel Size | 700c |
| Color | SLATE TO BLACK FADE |
